Dimensions:
11,0m
9,06m
3,6m
3,4m
Draught
1,58m
11,8t
3,5t
ca. 14t
(PDF 145kb)
Bulwark 30cm

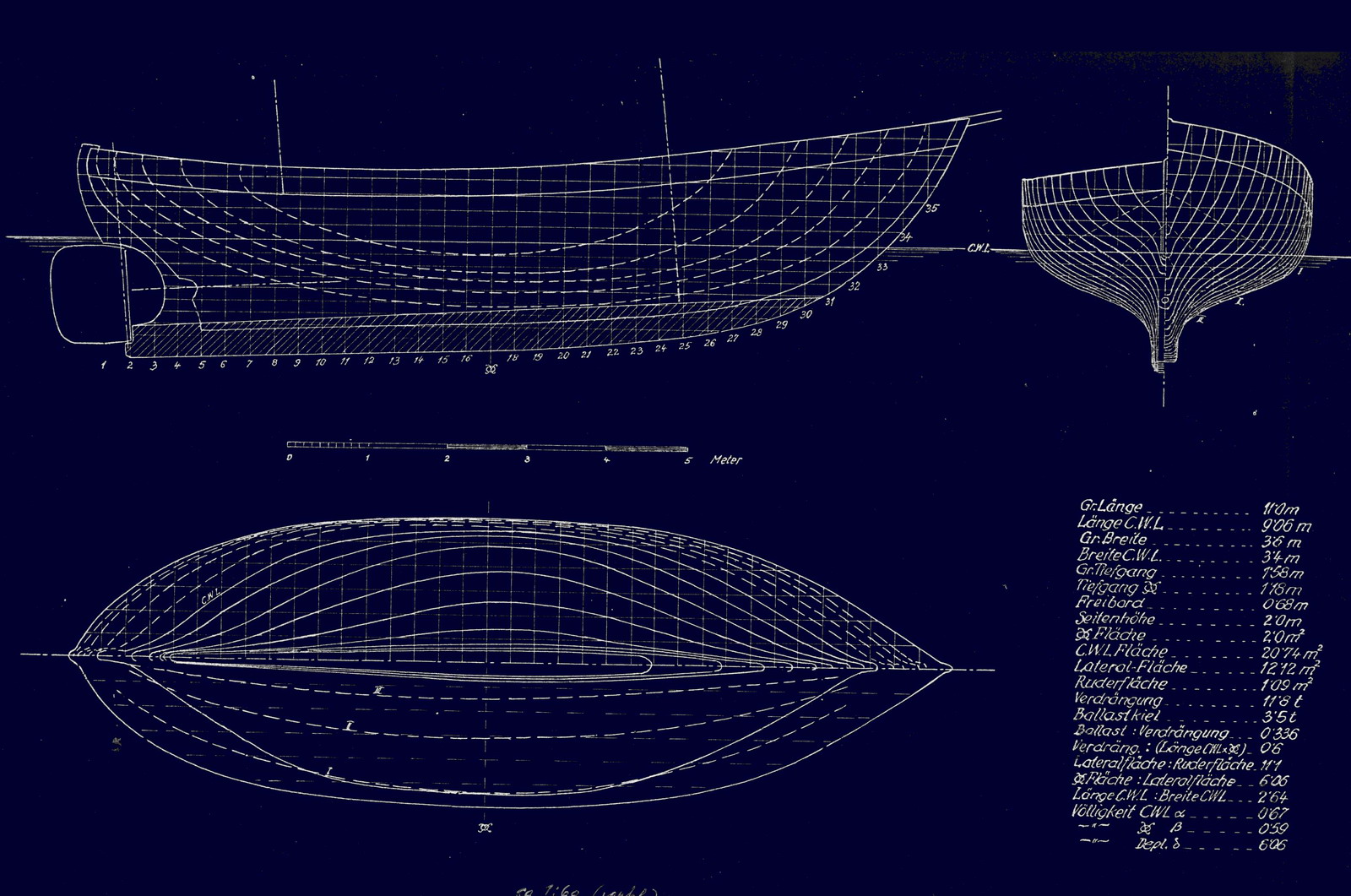

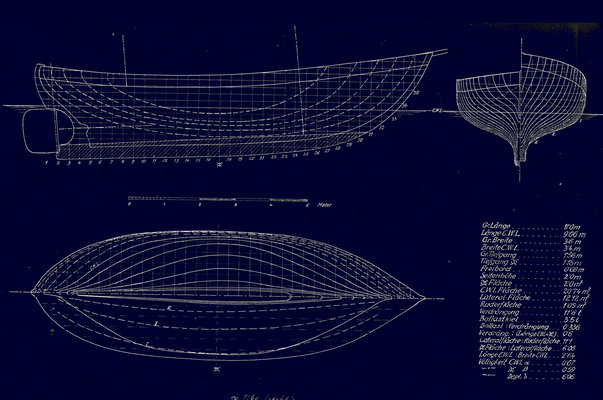

| ANIMA III - gaf rigged ketch in a modificated Colin Archer design | |||
|
Dimensions: |
||
| Length o.a. | 11,0m |
||
| Length C.W.L. | 9,06m |
||
| Beam | 3,6m |
||
| Beam C.W.L. | 3,4m |
||
Draught |
1,58m |
||
| Displacement | 11,8t |
||
| Ballast keel | 3,5t |
||
| Full load | ca. 14t |
||

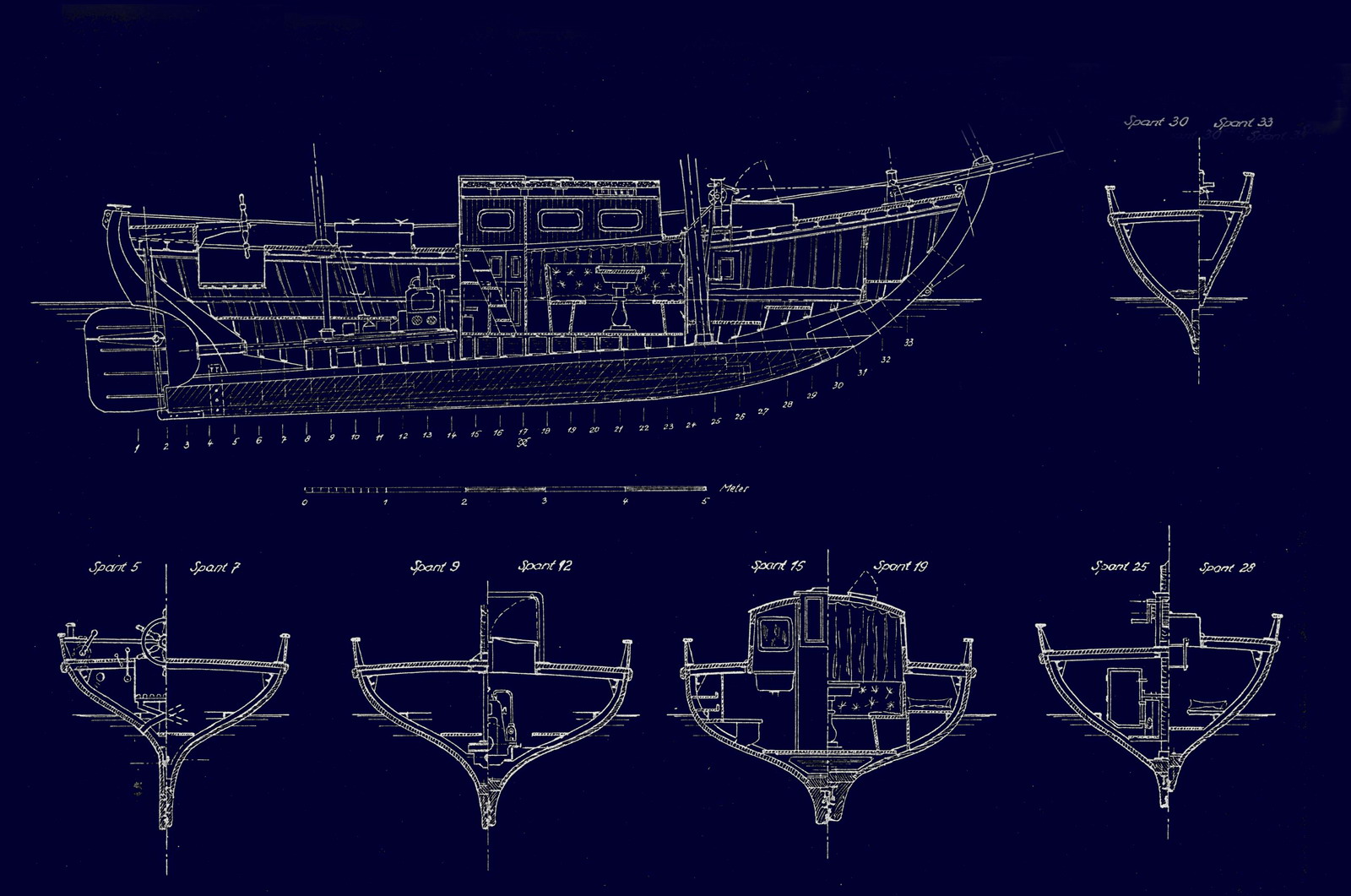

| Construction: | |||
| Steel frames 60/60/6 | |||
| Oak planked 35mm | |||
| Deck Larch 30mm | |||
| Ballast keel ferrocement | |||
| 2 bulkheads steelplate 4mm | |||
| Click on the pictures to enlarge | |||
|
Beschreibung des Erbauers | ||
|
|||
|
|||
| short description of the constructor (PDF 145kb) |
|||
| Click on the pictures to enlarge | |||
|
Weitere Angaben: | ||
Bulwark 30cm |
|||
| Railing 90cm | |||

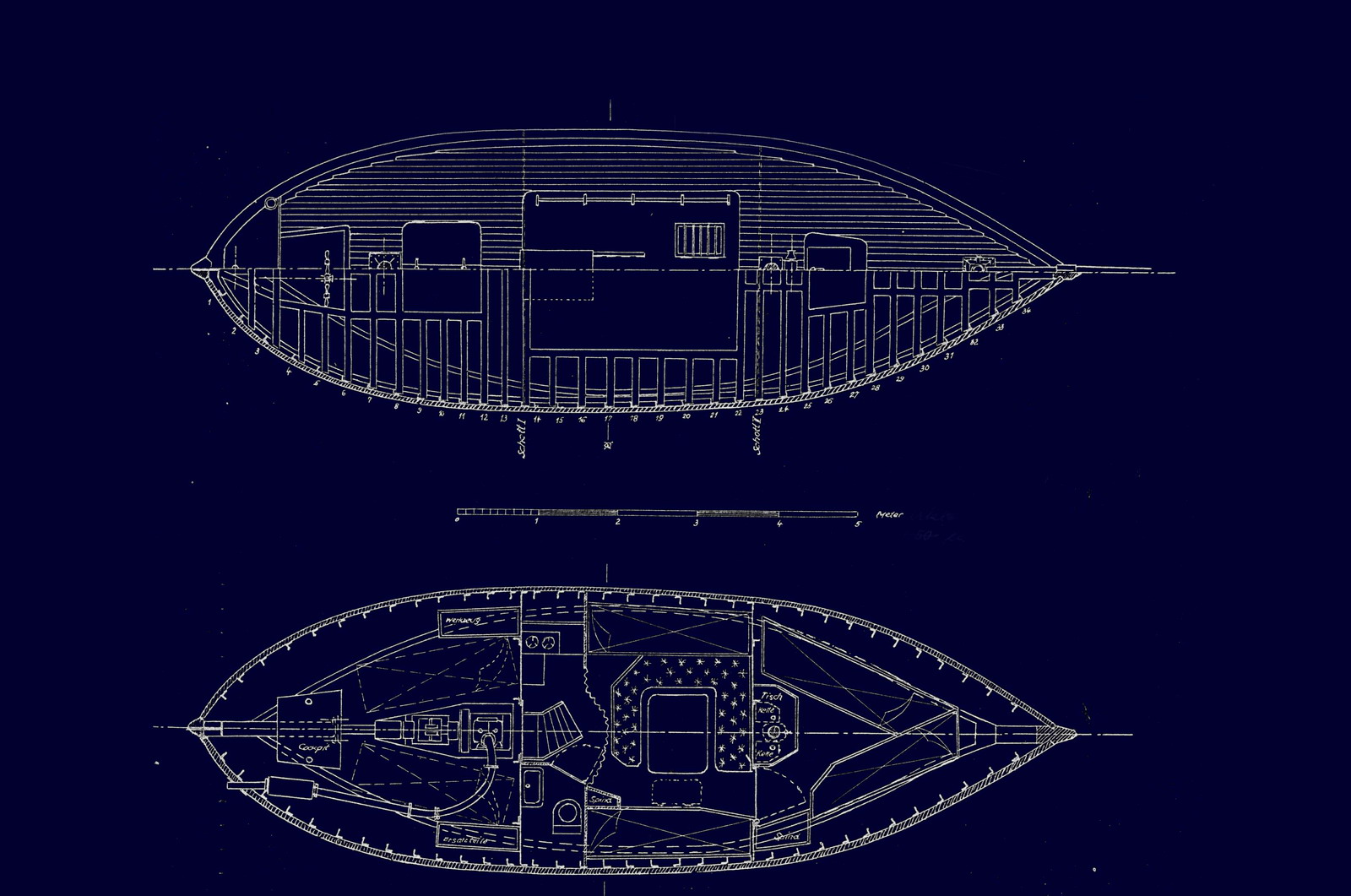

| Hatch dimensions : | |||
| Cabin 2x2,5m | |||
| engine room hatch 1x1,4m | |||
| Steering: wheel or tiller | |||
| Anchor windlass: manual with crank lever | |||
